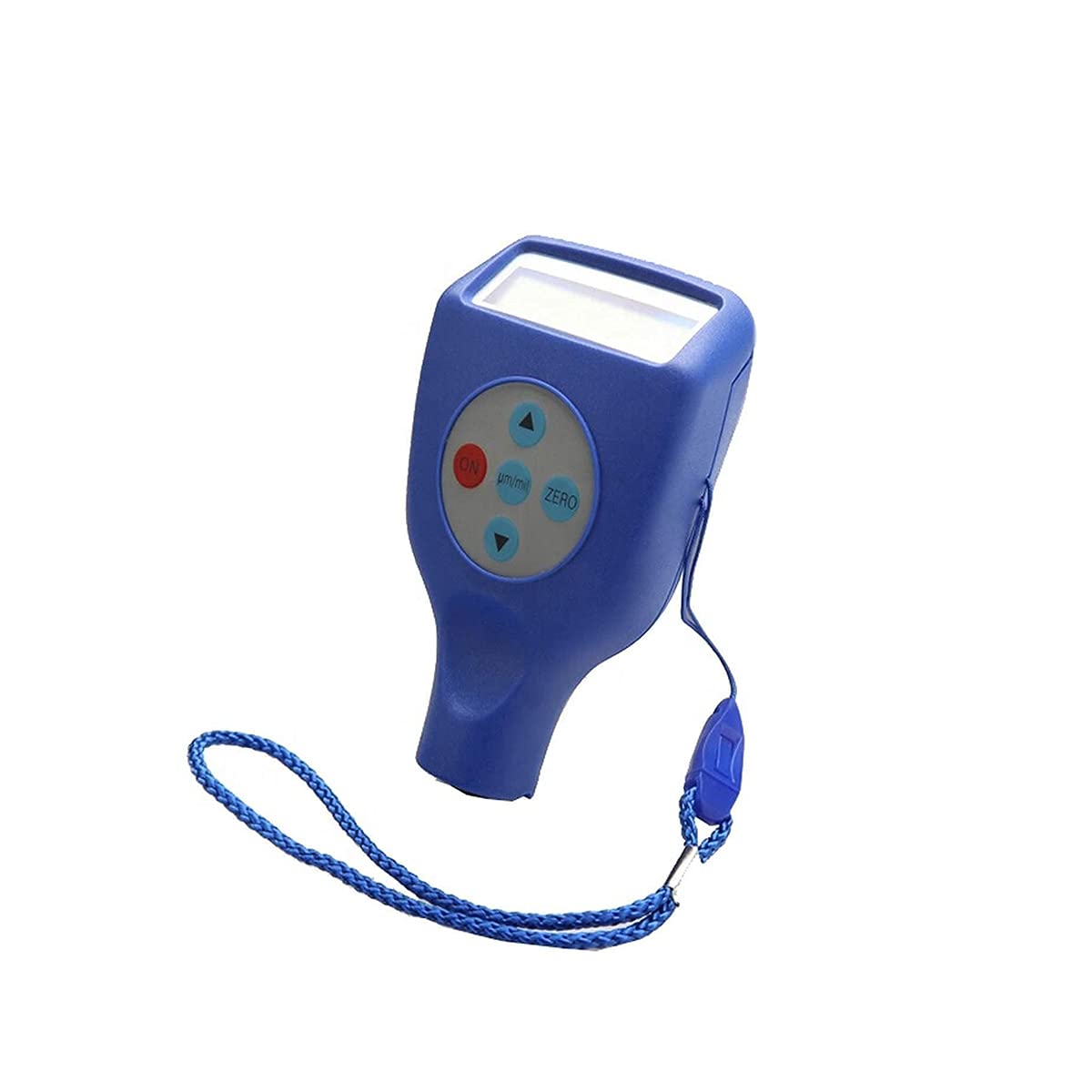

KEDUODUO Digital Paint Film Thickness Gauge - LCD Display Coating Thickness Meter for Galvanized & Painted Surfaces | Portable & Accurate | Perfect for Automotive, Construction & Industrial Quality Control

featureThickness measurement uses the eddy current method to measure non-conductive coatings on non-magnetic metal substrates.The system deviation of the probe can be corrected by the single-point method or the two-point method to ensure the accuracy of the equipment during the measurement process.Power supply voltage indication.The speaker beeps during operation.Automatic shutdown when idle; manual shutdown is possible.Negative display function to ensure the accuracy of zero calibration.Low power consumption, less than 10 μA in standby.Technical dataMeasuring range: 0-1250 μmPower supply: 2*AA batteries (not included)Measurement deviation: zero calibration ± (1+3%H); two-point calibration ± [(1% ~ 3% H)] H + 1.5Ambient temperature: 0-40℃Relative humidity: ≤85%Minimum base material: 10*10mmMinimum curvature: 5mm convex; 5mm concaveThinnest substrate: 0.4mmWeight: 99gSize: 102mm*66mm*24mmNotice:There may be measurement errors due to different measurement methods.Due to the influence of light, the color may be slightly different from the actual product.

The paint thickness gauge can quickly and effectively measure the thickness of the non-magnetic coating on the surface of the magnetic metal substrate or the non-metallic coating on the surface of the non-magnetic metal substrate.

This automatic paint meter is equipped with a high-precision probe that can measure up to 0.1um/0.1mil/0.001mm, and the large size EBTN LCD greatly enhances the reading experience, making it very easy to read.

Maximum, minimum and average value, battery indication, three measurement methods, automatic shutdown, three calibration modes, with reference plate, included pouch to protect the device, users no longer worry about carrying and storing.

Orange/green/red three-color backlight, representing the test results of different ranges, the range can be customized.

This coating thickness gauge is suitable for corrosion protection, electroplating plants, laboratories, workshops, paint shops, automotive, shipbuilding, aircraft industries, etc.
